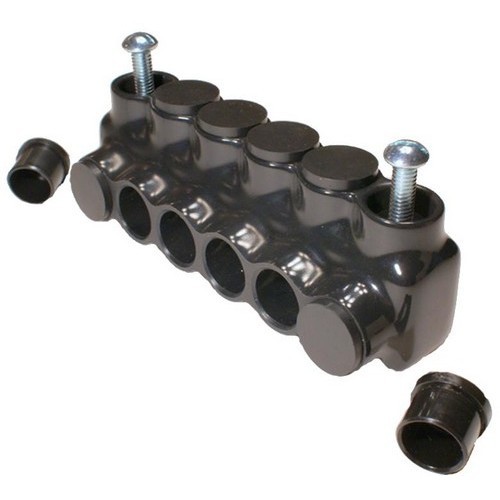

Mountable - Single Entry

This mountable Single Entry Connector saves time.
View Larger

Mountable - Single Entry - This mountable Single Entry Connector saves time.

Mountable - Single Entry features include:

  • Single entry connector has isolated bolt holes for mounting to trough, panel or wireway
  • Insulated with rugged high-dielectric rubber/vinyl coating
  • Wires enter same side
  • Pre-filled with oxide inhibitor
  • Plugs marked with connector max wire size for easy identification
  • Single entry connector is 6061 aluminum dual rated for use with copper and/or aluminum wires
  • One wire per terminal
  • cCSAus Certified through 600MCM size
  • Rated 90°C 600 Volt
  • Dimension Measurements = Inches
  • Order Qty of 1 = 1 Piece
  • Minimum Order Qty = 1 Piece

Below is more info on our Mountable - Single Entry

Available in cases of 1

Options

Cat No Wire Ports Wire Range Allen Hex Bolt Length Height Min
Order
Qty		 Price QuantityAvailable
9771224-141/8#101.971.451 Piece $36.7050 In Stock
9771444-141/8#102.821.451 Piece $41.0250 In Stock
9771664-141/8#103.651.451 Piece $45.4050 In Stock
9773222/0 - 147/32#123.011.501 Piece $40.1850 In Stock
9773332/0 - 147/32#123.691.501 Piece $44.2350 In Stock
9773442/0 - 147/32#124.361.501 Piece $49.2000 In Stock
9773552/0 - 147/32#124.741.501 Piece $54.1650 In Stock
9773662/0 - 147/32#125.411.501 Piece $58.2300 5-10 Days Availability
977422250 - 65/161/43.852.101 Piece $51.2400 5-10 Days Availability
977433250 - 65/161/44.712.101 Piece $56.7900 In Stock
977444250 - 65/161/45.572.101 Piece $60.8550 In Stock
977455250 - 65/161/46.432.101 Piece $65.8200 In Stock
977466250 - 65/161/47.292.101 Piece $70.7250 5-10 Days Availability
977522350 - 65/165/164.572.501 Piece $53.5800 In Stock
977533350 - 65/165/165.622.501 Piece $59.6700 In Stock
977544350 - 65/165/166.672.501 Piece $66.0300 In Stock
977555350 - 65/165/167.722.501 Piece $71.3250 In Stock
977566350 - 65/165/168.772.501 Piece $77.7300 5-10 Days Availability
977622600 - 45/165/165.632.901 Piece $75.4350 In Stock
977633600 - 45/165/167.112.901 Piece $82.1100 In Stock
977644600 - 45/165/168.472.901 Piece $89.4300 In Stock
977655600 - 45/165/169.832.901 Piece $95.5200 In Stock
977666600 - 45/165/1611.182.901 Piece $103.3800 5-10 Days Availability
977722750 - 2503/83/86.193.601 Piece $89.9700 5-10 Days Availability
977733750 - 2503/83/87.753.601 Piece $107.7600 5-10 Days Availability
977744750 - 2503/83/89.183.601 Piece $124.6350 5-10 Days Availability
977755750 - 2503/83/810.603.601 Piece $142.3800 5-10 Days Availability
977766750 - 2503/83/812.033.601 Piece $159.5700 5-10 Days Availability
